ProShake Pro - 地震工程分析和设计软件
ProShake Pro是一款功能强、用户友好的计算机程序,用于一维等效线性地面响应分析。ProShake 2.0从头开始编写。包括很多功能,可使数据输入、分析、查看和记录结果变得高效和有效,包括内置的模量减少和阻尼模型、土壤剖面和输入运动参数的图形显示、各种输出参数的图形化显示和地面响应动画。ProShake 2.0被分为三个“管理器”——一个输入管理器、一个解决方案管理器和一个输出管理器。输入管理器允许输入土壤剖面和输入运动数据。解决方案管理器执行迭代等效线性分析,同时跟踪向应变兼容土壤特性收敛的过程。输出管理器允许以时间历史、响应谱、参数配置文件和动画的形式轻松绘制结果。还可以计算一系列其他参数。ProShake 2.0还包括有用的报告功能,作为Microsoft® Word®格式的文件,以表格形式自动记录每个分析的条件。全部ProShake 2.0绘图都可以复制到报告中并保存,以便在Microsoft® Word®中进行后续编辑。

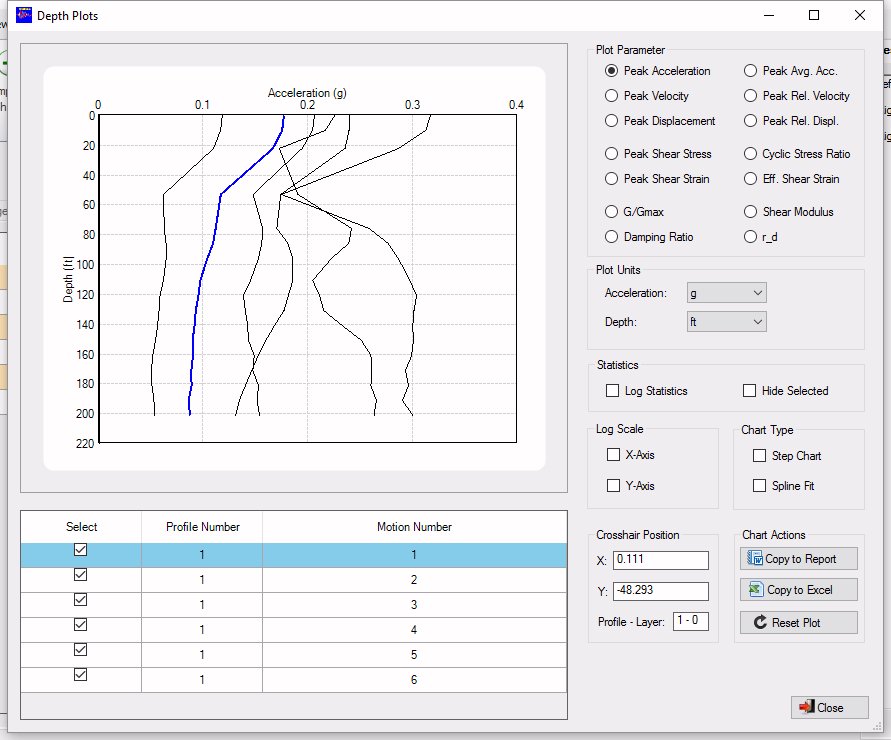

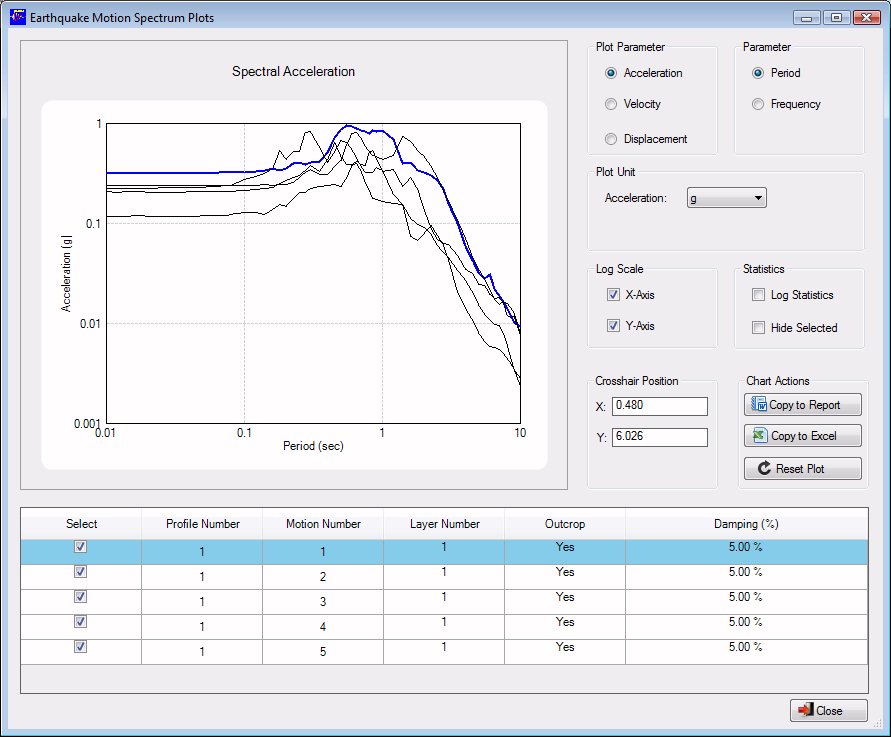

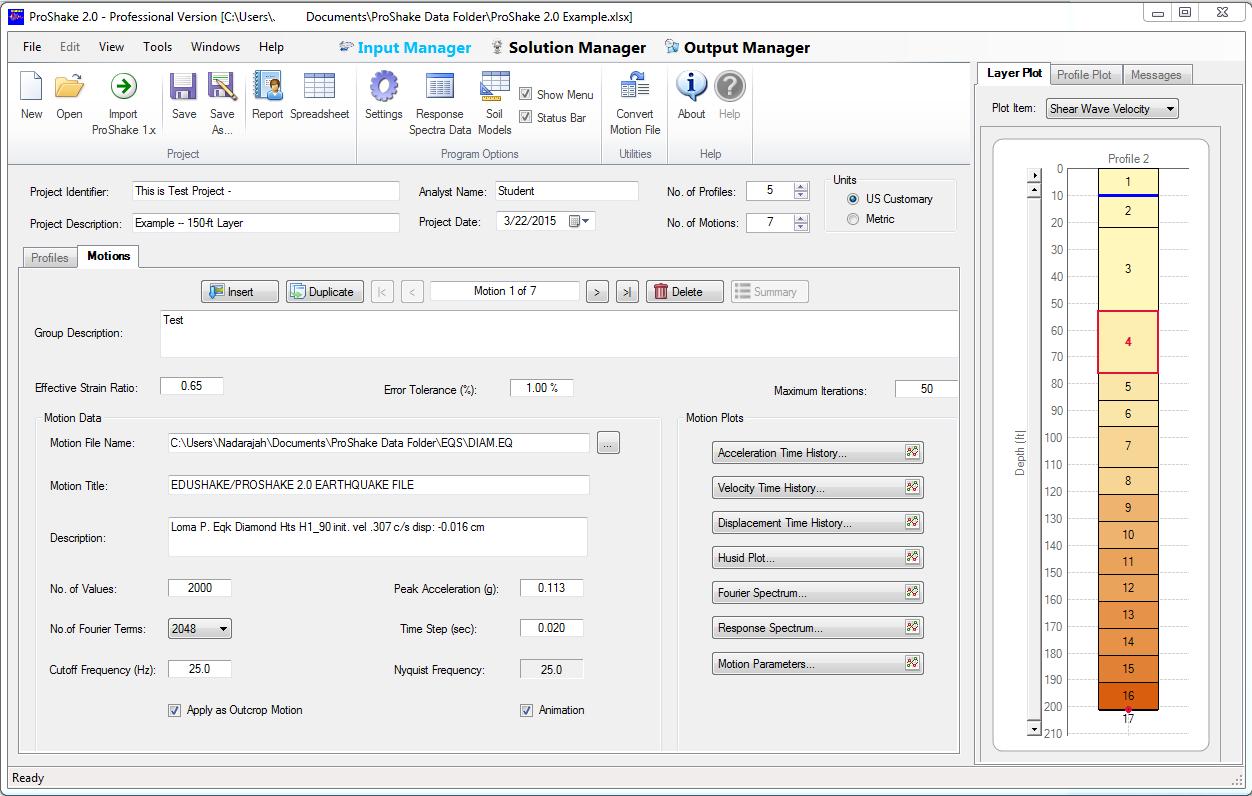

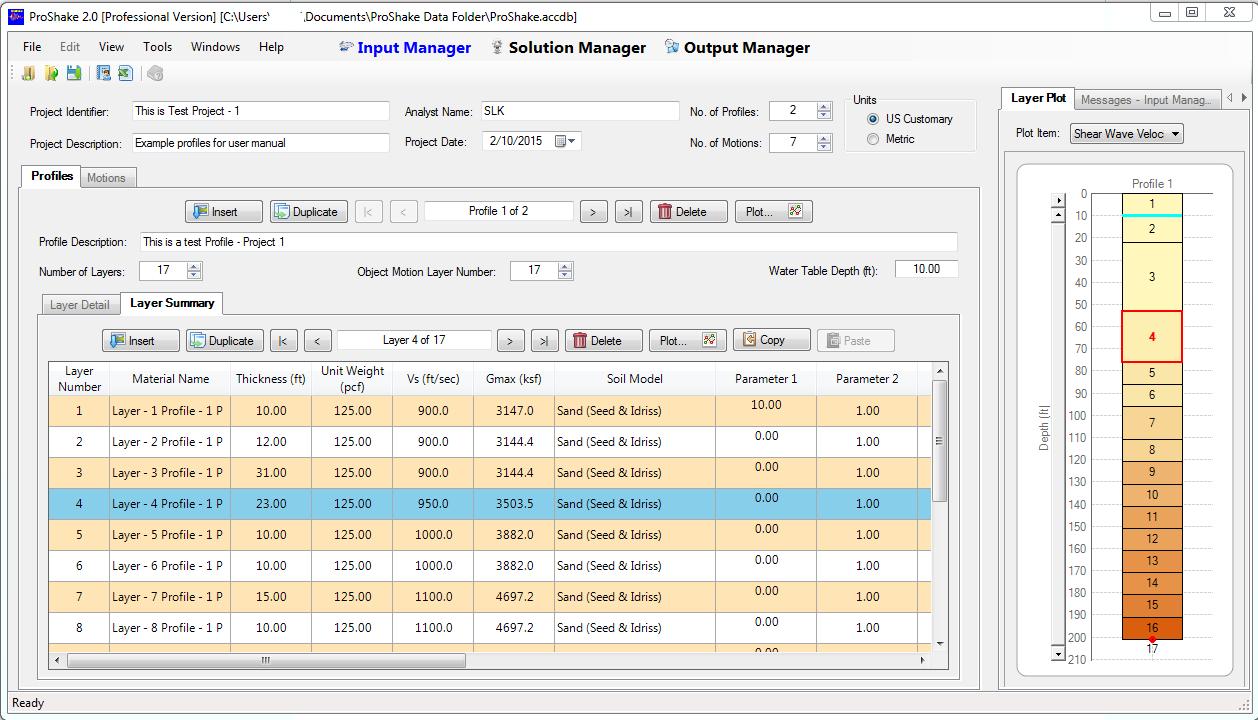

ProShake 2.0用户界面图
ProShake 2.0在ProShake 1.12的基础上加入了很多增强功能。这只是增强功能的简短列表:
-
重新设计的用户界面,在输入和输出管理器中具有广泛的绘图选项。
-
适用于全部新版本Microsoft® Windows® OS、Windows Vista®或更高版本。
-
将Microsoft® Excel®和Word®格式文件分别用于输入数据/结果/输出和报告。
-
可以在同一个项目中分析多个土壤剖面(分析)。
-
识别PEER格式 (.AT2) 运动。
-
数据输入期间配置文件和属性的图形显示。
-
具有强度兼容模量折减曲线选项的新土壤模型。
-
数据过滤以有效检查和绘制分析结果。
-
将地面运动动画导出为Flash文件,以供单独查看或插入演示文稿。
硬件配置要求:
Machine |
Minimum: 1.9GHz clock speed processor Recommended: dual processor |
内存 |
Minimum: 2GB of RAM Recommended: 4GB RAM or more |
Display |
Minimum: 1024 x 768 screen resolution Recommended: 1600x1200 |
硬盘 |
Minimum: 500 MB free hard disk space Recommended: 5GB free hard disk space |
NET version | NET 4.0 Client Profile required |
【英文介绍】
ProShake 2.0 is a powerful, user-friendly computer program for one-dimensional, equivalent linear ground response analysis. Written completely from scratch, ProShake 2.0 includes numerous features to make data entry, analysis, viewing and documenting of results efficient and effective, including built-in modulus reduction and damping models, graphical display of soil profile and input motion parameters, graphical display of a wide variety of output parameters, and animation of ground response. ProShake 2.0 is organized into three "managers" - an Input Manager, a Solution Manager, and an Output Manager. The Input Manager allows entry of soil profile and input motion data. The Solution Manager performs iterative equivalent linear analyses while tracking the process of convergence toward strain-compatible soil properties. The Output Manager allows easy plotting of results in the form of time histories, response spectra, parameter profiles, and animations. A series of other parameters can also be computed. ProShake 2.0 also includes useful Report feature, as a file in Microsoft® Word® format, that automatically records the conditions of each analysis in tabular form. All ProShake 2.0 plots can be copied to the Report and saved for subsequent editing in Microsoft® Word®.
ProShake 2.0 incorporates numerous enhancements over ProShake 1.12. This is only a short list of the enhancements:
-
Completely redesigned user interface with extensive plotting options in the Input and Output Managers.
-
Works on all new versions Microsoft® Windows® OS, Windows Vista® or higher.
-
Uses Microsoft® Excel® and Word® format files for input data/results/output and report, respectively.
-
Can analyze multiple soil profiles within the same project (analysis).
-
Recognizes PEER-formatted (.AT2) motions.
-
Graphical display of profile and properties during data entry.
-
New soil models with option for strength-compatible modulus reduction curves.
-
Data filtering for efficient examination and plotting of analysis results.
-
Exporting of ground motion animations as Flash files for stand-alone viewing or insertion into presentations.
